Catalog
Motorcycle Waterproof Controller
Model:SC5X-MT
Compact and smart waterproof design controller, it is available with 20 amp maximum output, 5Amp each button. One significant advantage of the SC5X controller is its waterproof design. With an IP67 rating, the controller can effectively prevent water and dirt from entering the device, making it suitable for use in rugged and challenging environments. The switch can operate exterior to vehicles,it is applicable for boats, motorcycles, and other outdoor equipments.
Send Inquiry

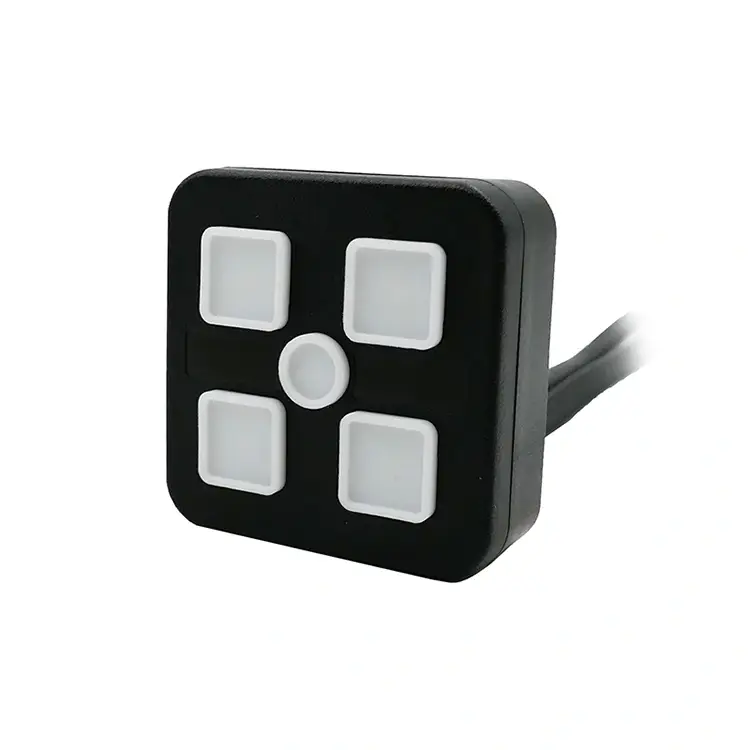

Motorcycle waterproof controller SC5X-MT
Product Introduction
The switch SC5X is a all-in-one controller with integrated relay. It is 10-30V, dual color LED background rubber buttons.The switch hasover-temperature protection and short circuit protection function. Fast and convenient mounting or dismantling with 3M Adhesive.
Features
- 10-30VInput voltage. Includes 5 buttons, one on/off button and 4 DIY buttons
- 4 x 5 Amp output switch
- IP67, waterproof controller
- Each Output built-in 5 amp fuse. Max Power 20A.
- Selectable icon sticker to clearly label your panel
- 6.1/4" thread stand screw hole for bracket mount
- 7.Universal compatibility controller
- 8.The switch has over-temperature protection and short circuit protection
- 9.Mounting bracket is for options
- 10.ECE R10 approved
- 11.Dual color led backgroud, much more visible

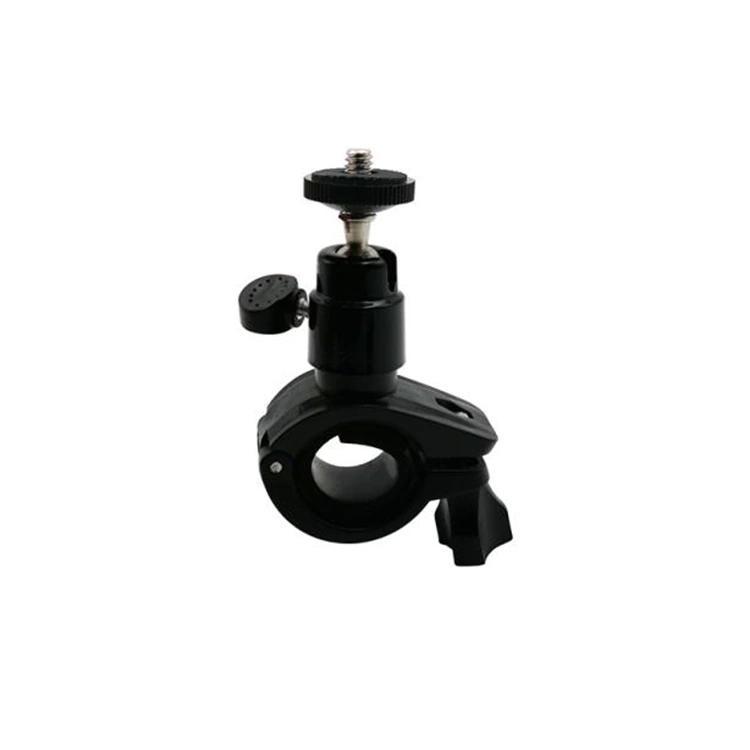

Specific bracket for motorcycle

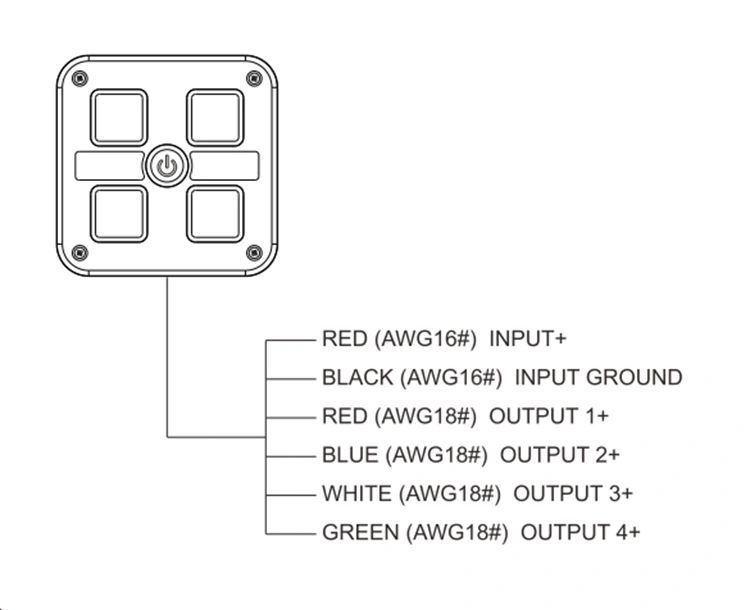

Wiring drawing
